Discover the DAF XF, XG, XG⁺ Electric
Driving zero emissions in heavy-duty applications
Driving zero emissions in heavy-duty applications
Beyond getting from A to B as efficiently as possible, forwardthinking regional, national and international haulage companies are looking to reduce their emissions. To shrink their own environmental footprint, help their clients meet their sustainability targets and showcase their own green credentials. DAF XF, XG and XG+ Electric trucks are setting the industry standard in efficiency, safety and driver comfort. With state-of-the-art powertrains and modular high-density battery packs they deliver outstanding performance, range and durability. With a range of cab, chassis and axle configuration options, there is always a DAF Electric vehicle perfectly tailored to your needs.
Range
More than 500 km
Energy capacity
From 210 - 525kWh
Power levels
170kW | 220kW
270kW | 310kW | 350kW
Charging options
22 kW AC + 150 kW DC
22 kW AC + 325 kW DC
150 kW DC
325 kW DC
Powerful and refined powertrain
The DAF XF, XG and XG+ Electric trucks are driven by the powerful PACCAR EX-D1 and EX-D2 electric motors, with outputs from 170 to 350 kW. The powershift technology uses two e-motors to smooth out torque differences during gear changes. This results in seamless shifting and gives DAF electric trucks a unique and effortless driving experience.
| Vehicle type | e-Motor | Power (kW) | Energy capacity (kWh) |
|---|---|---|---|
| DAF XF Electric | PACCAR EX-D1 | 170 | 210 kWh to 525 kWh |
| DAF XF Electric | PACCAR EX-D1 | 220 | 315 kWh to 525 kWh |
| DAF XF Electric | PACCAR EX-D1 | 270 | 315 kWh to 525 kWh |
| DAF XF, XG, XG⁺ Electric | PACCAR EX-D2 | 270 | 315 kWh to 525 kWh |
| DAF XF, XG, XG⁺ Electric | PACCAR EX-D2 | 310 | 420 kWh or 525 kWh |
| DAF XF, XG, XG⁺ Electric | PACCAR EX-D2 | 350 | 420 kWh or 525 kWh |
Aerodynamic cabs
Our development teams have exploited the new European masses and dimensions regulations to the full, creating extraordinarily aerodynamic cabs. Curved windscreens, tapered sidewalls, roof air deflectors, aero seal, collars, sideskirts, bottom plates and closed wheel bay covers all help reduce drag by guiding wind round, through and under the vehicle.

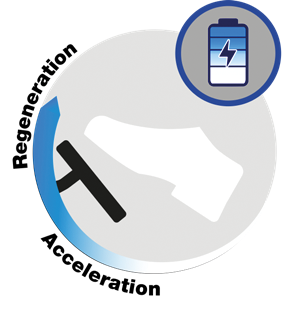

DAF One Pedal Drive
In order to maximize efficiency, DAF One Pedal Drive functionality can be engaged to use the electric motor for recuperating energy when braking. When regenerative braking is activated through the right-hand stalk, the truck can be controlled by just using the accelerator pedal. The effect of the pedal stroke position will vary depending on driving conditions to make the one pedal driving feel as smooth and intuitive as possible. The maximum amount of available braking power has three levels: 33%, 67%, or 100% of the maximum motor power, and can be manually adjusted using the right-hand stalk.
The power of comfort
There’s a reason DAF trucks are recognised across the industry as the benchmark for driver comfort. Dashboard, seats, beds, driveline, suspension… It all adds up to the perfect setup. Not just for driving but also for resting, and daily admin.

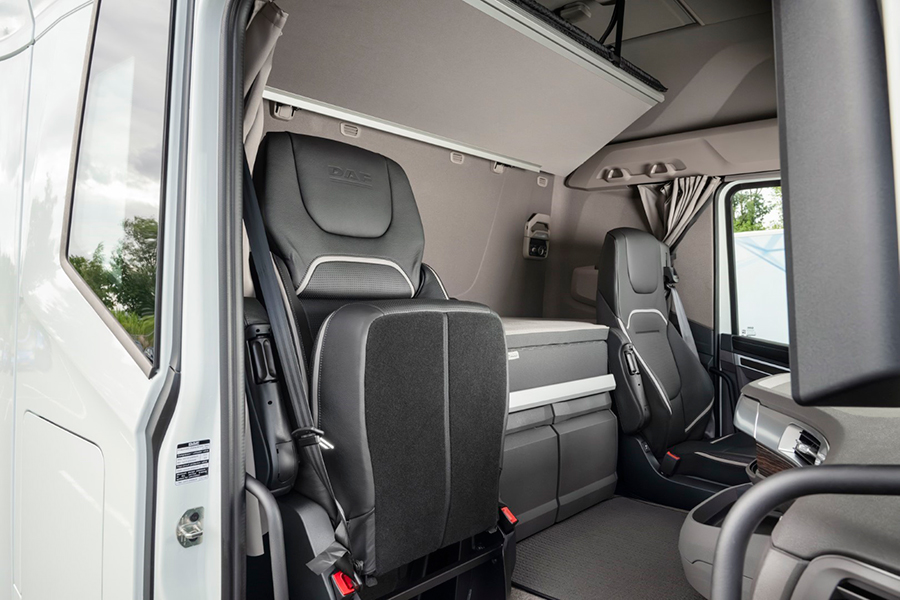

Luxurious cab
The easy-to-access cab exploits the new masses and dimensions regulations to create a space with more than enough room to stand upright, and the largest seat and steering wheel adjustment ranges on the market. The XF bed is more than comfortable, but the extra-wide (80 cm) XG and XG+ beds exceed expectations with options including an adjustable headrest, electrically-adjustable Relax bed and upper sleeping or luggage bed.
Endless storage possibilities
In the XF, XG and XG+ space is never an issue. There’s loads of storage in the roof console, on the dashboard, in the door pockets and under the lower bunk. But also, for example, a handy compartment with USB connector and 12V socket, large storage tray for documents, double cup holder, three credit card slots, and optional phone-charging storage. Plus a large retractable table ideal for eating or working — and still there’s enough room over for a microwave or TV!
The power of safety
The New Generation DAF XF, XG and XG+ Electric offer outstanding safety not only for your drivers and co-drivers, but also for other road users and pedestrians. It’s all part of our commitment to safer roads and cities.
Fast charging

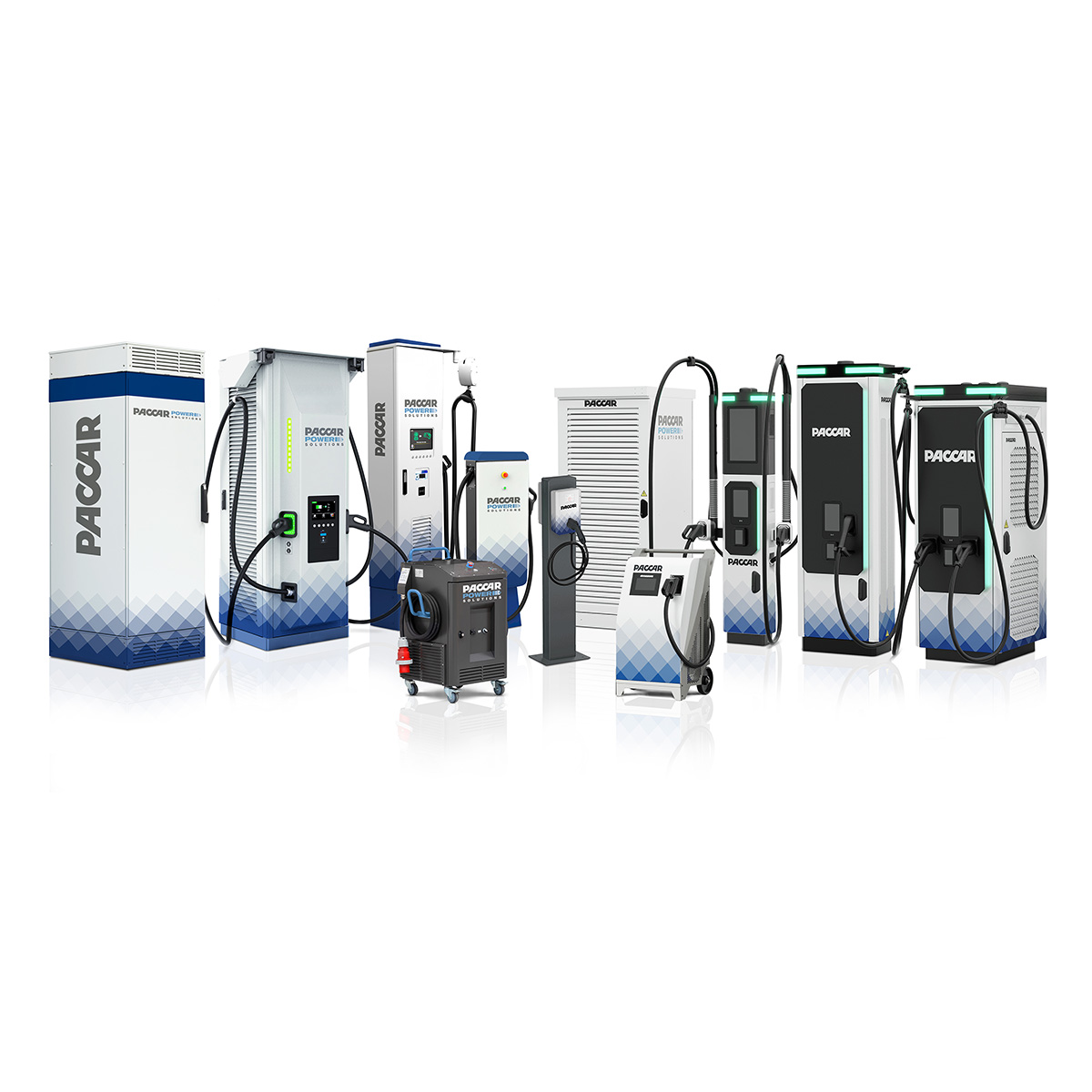

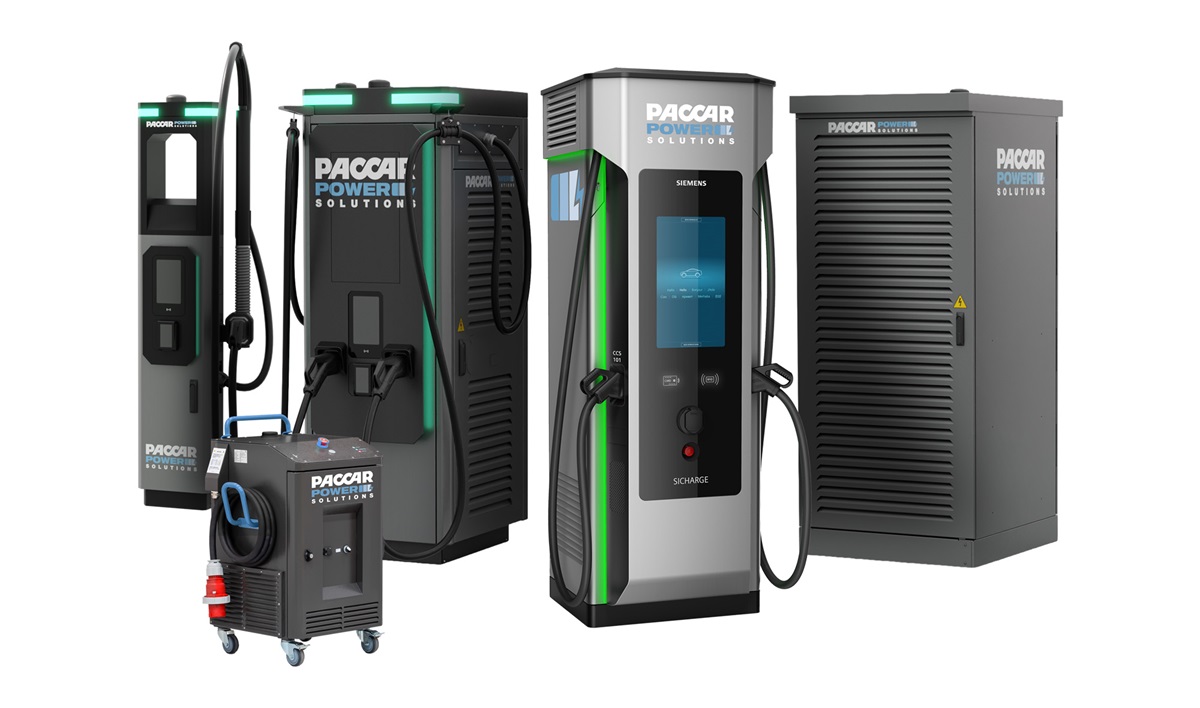

Key to uptime is getting your energy recharged as quickly and efficient as possible. There are multiple ways to achieve this. DAF Electric vehicles come with the industry standard CCS2 charging sockets to facilitate quick charging. DAF Electric includes an AC charging solution (22 kW) as well as fast charging options ranging from 150 to 325 kW. Charging 80% can be achieved in 45 minutes (for a 420 kWh battery pack), keeping you on the road as much as possible! As a complete mobility provider DAF can facilitate in creating a fitting charging infrastructure with our PACCAR chargers.
Technical information

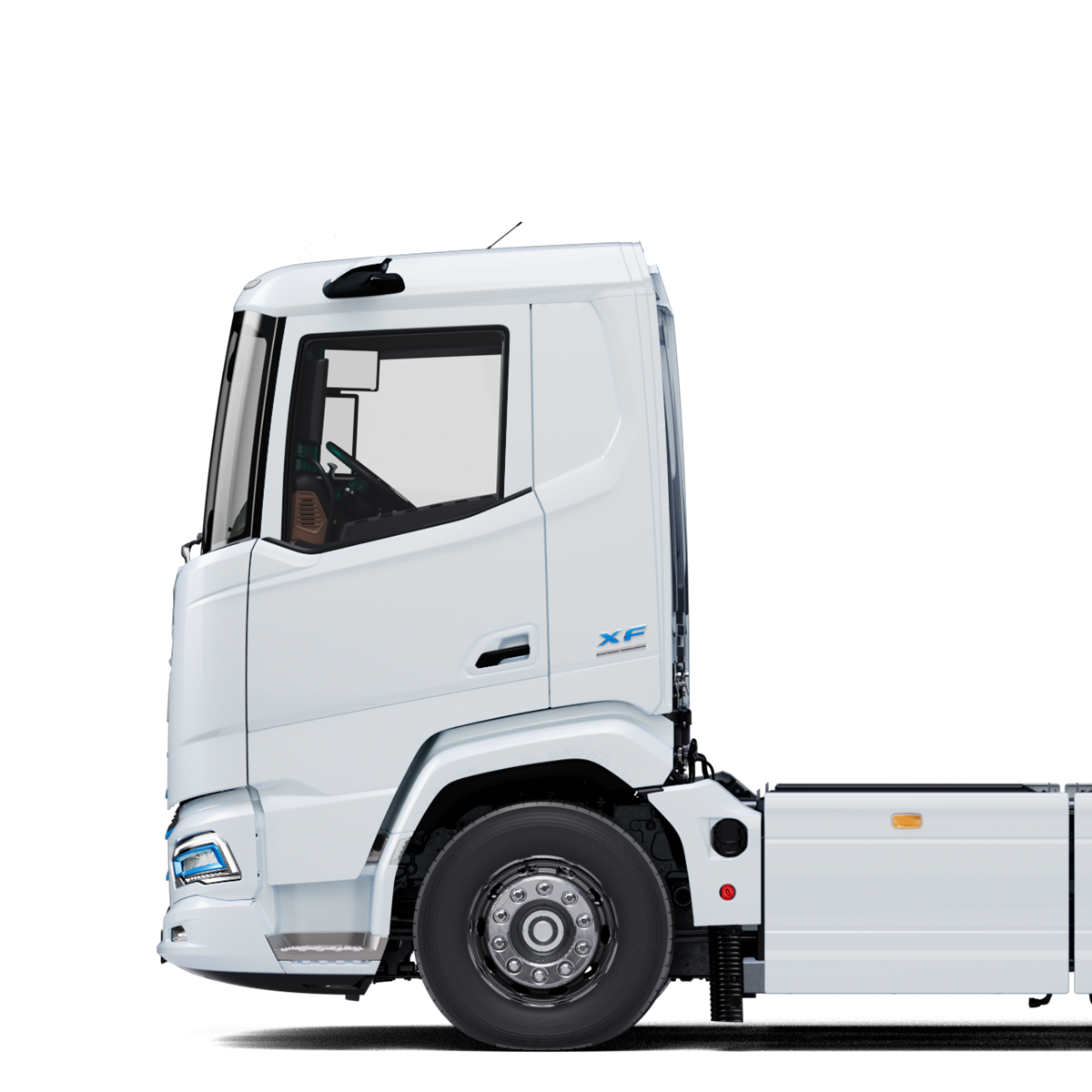

Day Cab

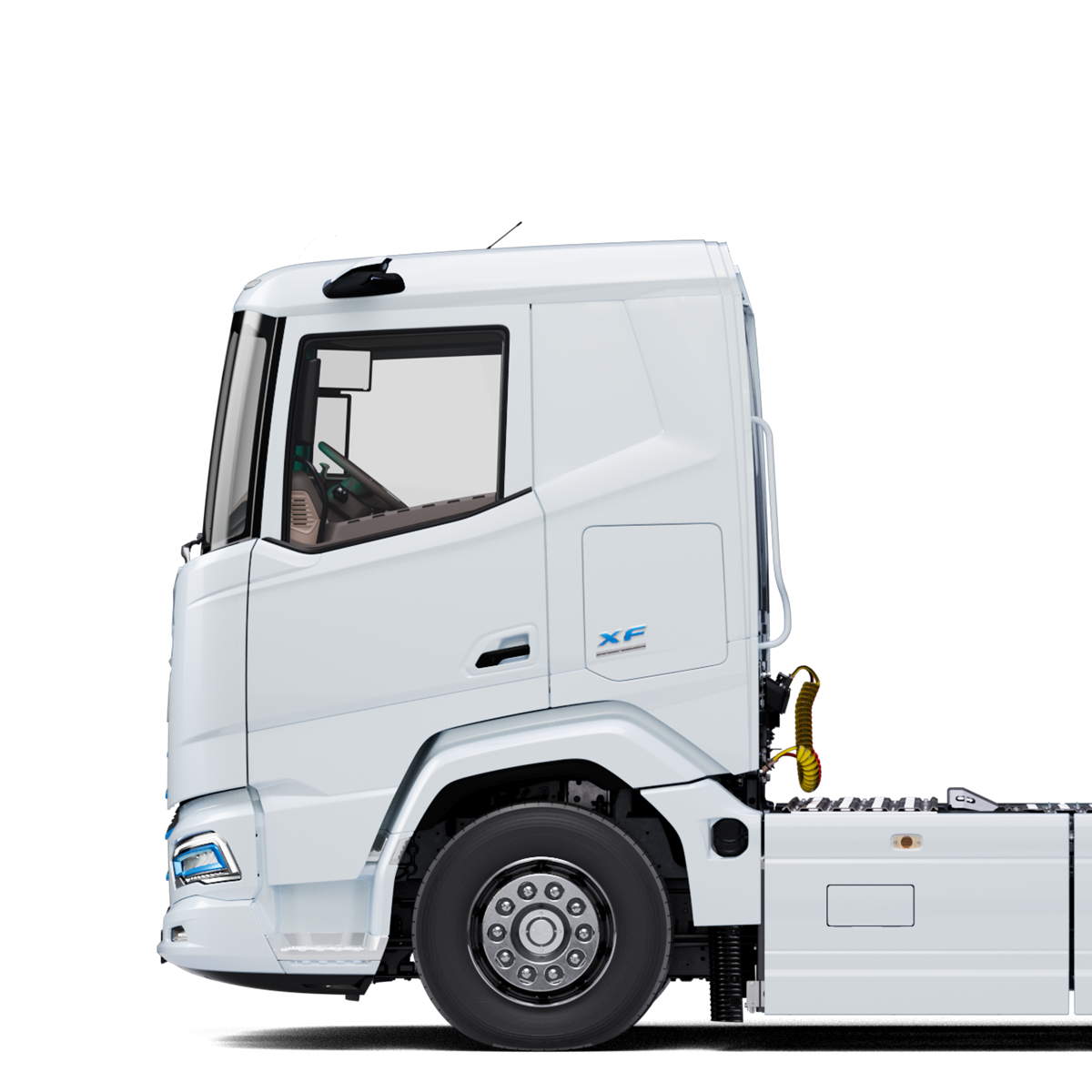

Sleeper Cab

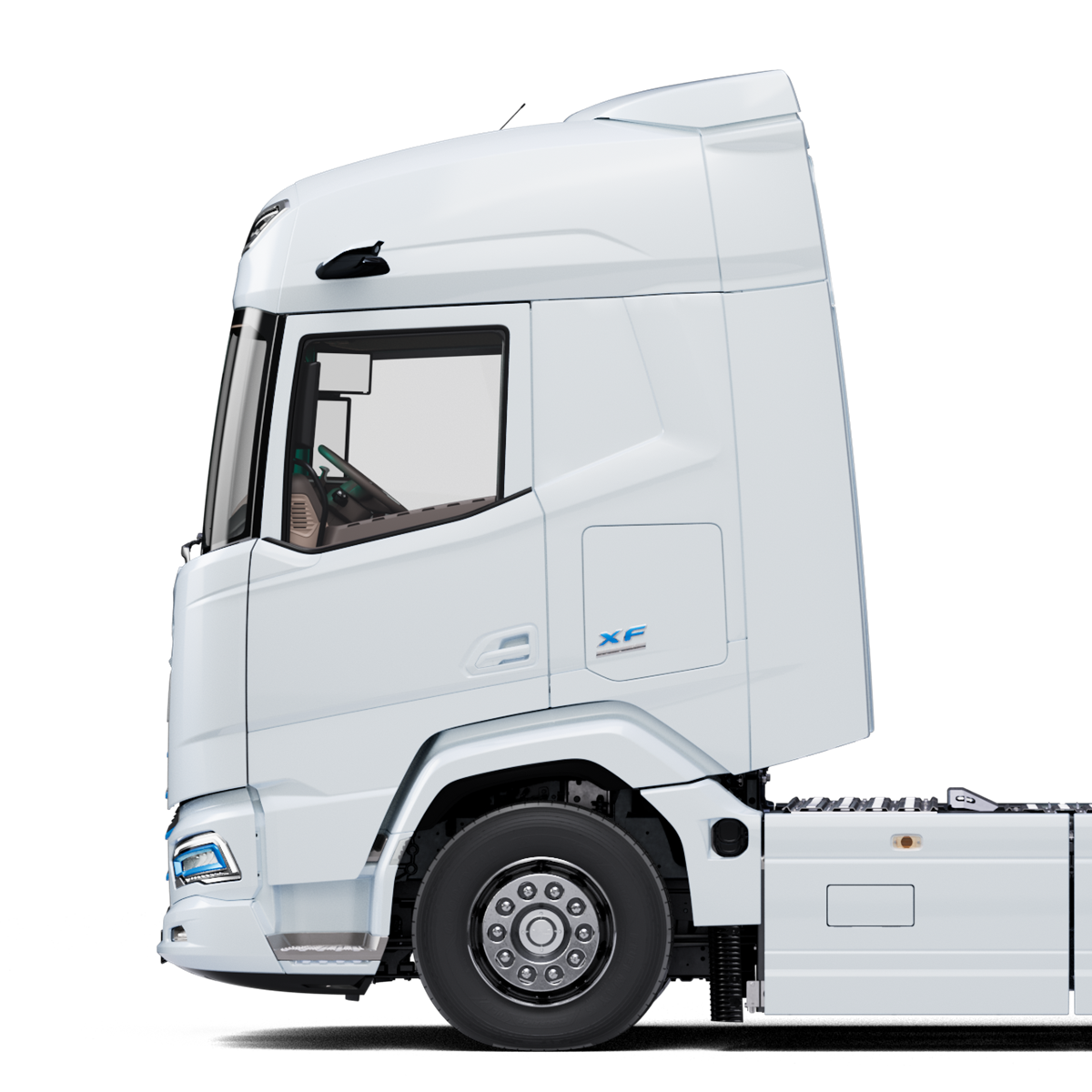

Sleeper High Cab

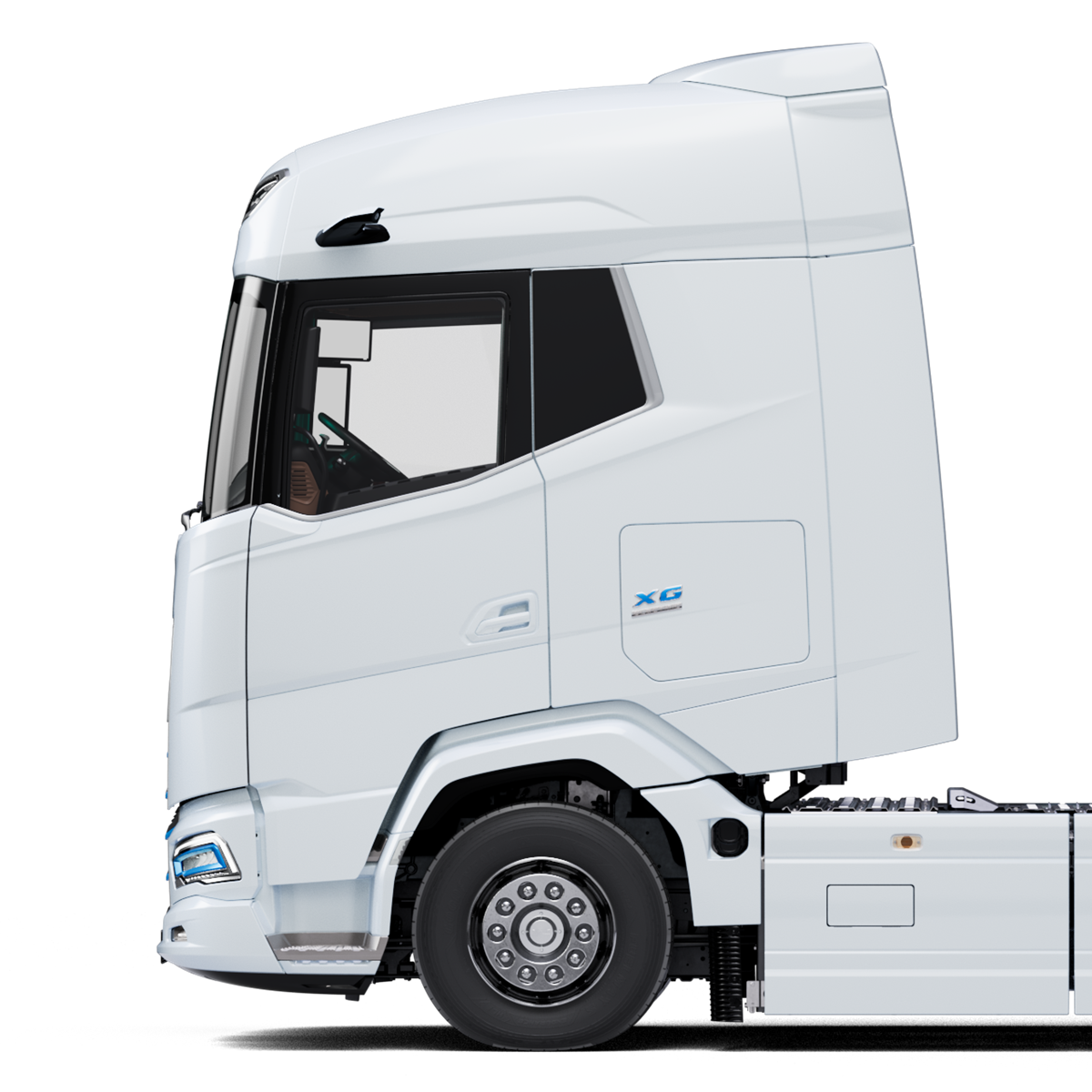

XG Cab

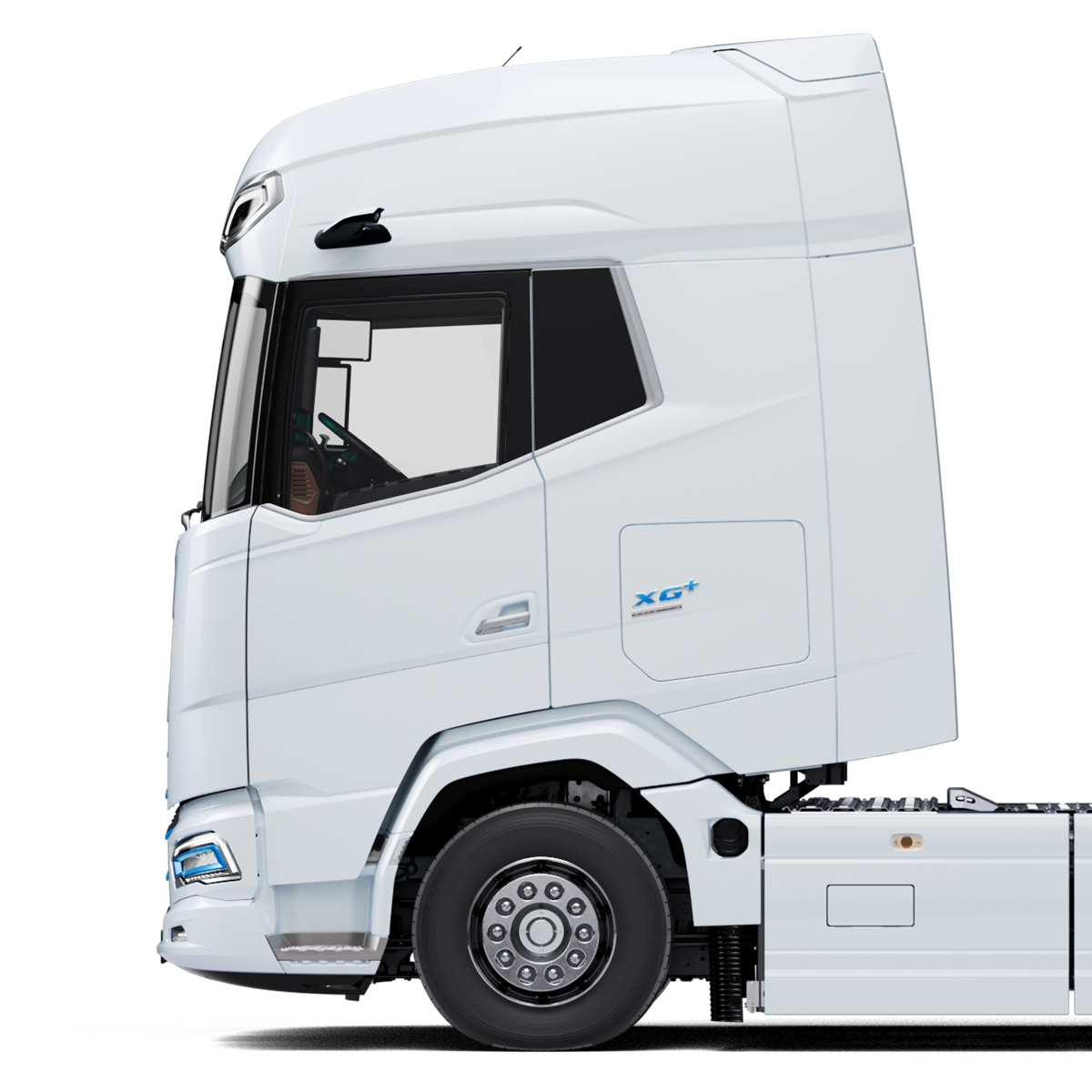

XG+ Cab
Bodybuilder friendliness

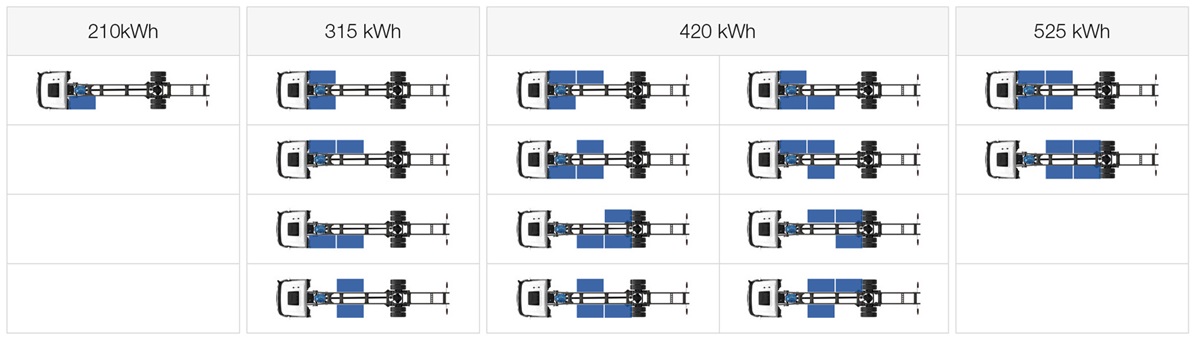

Thanks to flexible and modular packaging of the batteries on the chassis, the DAF Electric trucks offer industry leading bodybuilder friendliness. Battery packs can be optimally tuned to the vehicles' application, leaving ample space for side loader superstructures and crane legs for instance. A 25, 60 or 100 kW Electric Power Take-Off (ePTO) is optionally available for the XF, XG and XG+ Electric.
